Pre-requisites

Download USB_ModeSwitch http://www.draisberghof.de/usb_modeswitch/#download. I had used usb_modeswitch-0.9.5.

Download UMTSmon from http://umtsmon.sourceforge.net/downloads.shtml. I had used umtsmon-0.9 version download from sourceforge.net.

Setup

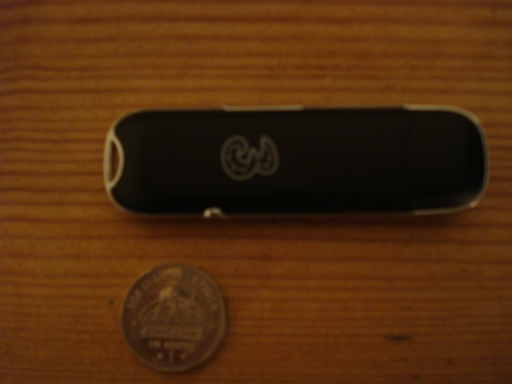

Insert the SIM card to the USB device, and plug it into the computer.


Use usb_modeswitch to switch the configuration:

sudo /path/to/usb_modeswitch-0.9.5/usb_modeswitch -v 0x12d1 -p 0x1001 -H 1

Run umtsmon

sudo /path/to/umtsmon

It will prompt for PIN number. Enter it in the text box.

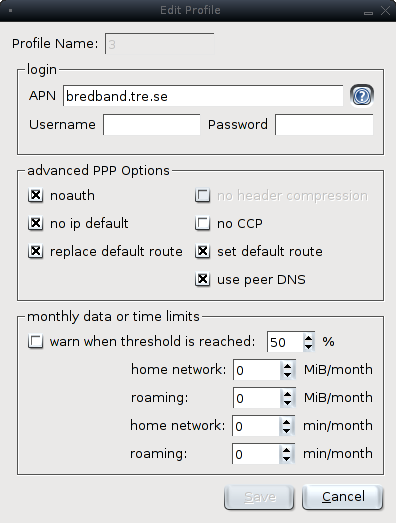

Create a profile. Take default values, and use "bredband.tre.se" for APN settings entry to be used with Tele2.


Connect and it should connect and create a ppp0 interface.

Bibliography

  1. [USB_ModeSwitch]. USB_ModeSwitch. http://www.draisberghof.de/usb_modeswitch.

  2. [UMTSmon]. UMTSmon. http://umtsmon.sourceforge.net/.
